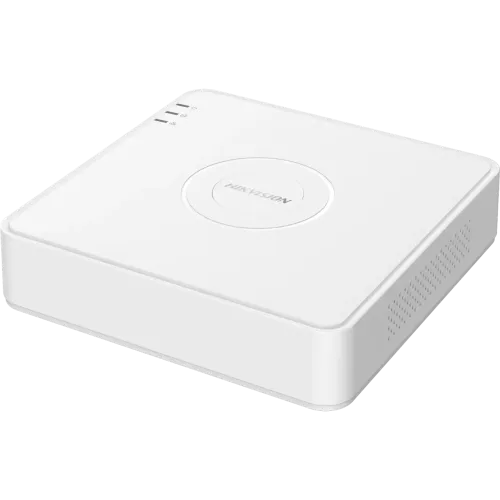

Hikvision DS-7108HGHI-M1 08 Channel 720p Mini 1U H.265 DVR
25 people are viewing this product right now
General
Brand
Hikvision
Model
Hikvision DS-7108HGHI-M1
Type
Mini DVR
Video Info
Number of Input Channel
08 Channel
Video Input Channel (BNC)
8-ch BNC interface (1.0 Vp-p, 75ohm), supporting coaxitron connection
Video Compression/Format
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Video Output (VGA)
1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz
Video Output (HDMI)
1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz
Max. Video Recording Res.
720p
Video Bit Rate
32 Kbps to 4 Mbps
IP Video Input
2-ch (up to 10-ch) Up to 5 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
Analog & HD-TVI Video Input
1-ch RCA (2.0 Vp-p, 1 Kohm) 8-ch via coaxial cable
Audio Info
Audio Input Channel (RCA)
1-ch RCA (2.0 Vp-p, 1 Kohm) 8-ch via coaxial cable
Audio Compression
G.711u
Audio Output Channel
1-ch, RCA (Linear, 1 Kohm)
Two way Audio
Reuse the first audio input
Audio Bit Rate
32 Kbps to 4 Mbps
Recording & Decoding
Frame Rate
Main stream: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: For 1080p and 720p stream access: CIF/QVGA@15 fps For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)
Stream Type
Video, Video & Audio
Dual Stream Support
Yes
Synchronous Playback
8-ch
Network
Network Protocol
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP, HTTPS
Network Interface (RJ45)
1 x RJ45 10/100 Mbps self-adaptive Ethernet interface
Remote Connections
64
Auxiliary Interface
Number HDD Interface (SATA)
1 SATA
Max HDD Support (GB,TB)
4TB
Max. Storage Support
4TB
USB Port
2 x USB 2.0
Technical Info
CVBS Input
Support
Power Info
Power Supply
12 VDC, 1.5 A
Approx. Power Consumption
<=17 W (without HDD)
Physical Description
Color
White
Dimensions
200 x 200 x 48mm
Weight (Kg)
1 kg
Warranty
Warranty Details
1 year
Additional Info
Feature
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported; Audio via coaxial cable, Up to 1080p Lite@15 fps encoding capability, Max. 1200 m for 720p HDTVI signal.
Others
Encoding Resolution: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF For 720p stream access: 720p/WD1/4CIF/VGA/CIF For SD stream access: WD1/4CIF/VGA/CIF, AHD Input 1080p25, 1080p30, 720p25, 720p30, HDCVI Input 1080p25, 1080p30, 720p25, 720p30, Video Output Mode HDMI/VGA simultaneous output, Working Temperature: -10 to 55 Degree C, Working Humidity: 10% to 90%.
Country Of Origin
China
Made in/ Assemble
China
3,350.00৳
🔥 9 items sold in last 3 hours
Hikvision DS-7108HGHI-M1 08 Ch...
3,350.00৳
1 in stock
General
Brand
Hikvision
Model
Hikvision DS-7108HGHI-M1
Type
Mini DVR
Video Info
Number of Input Channel
08 Channel
Video Input Channel (BNC)
8-ch BNC interface (1.0 Vp-p, 75ohm), supporting coaxitron connection
Video Compression/Format
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Video Output (VGA)
1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz
Video Output (HDMI)
1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz
Max. Video Recording Res.
720p
Video Bit Rate
32 Kbps to 4 Mbps
IP Video Input
2-ch (up to 10-ch) Up to 5 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
Analog & HD-TVI Video Input
1-ch RCA (2.0 Vp-p, 1 Kohm) 8-ch via coaxial cable
Audio Info
Audio Input Channel (RCA)
1-ch RCA (2.0 Vp-p, 1 Kohm) 8-ch via coaxial cable
Audio Compression
G.711u
Audio Output Channel
1-ch, RCA (Linear, 1 Kohm)
Two way Audio
Reuse the first audio input
Audio Bit Rate
32 Kbps to 4 Mbps
Recording & Decoding
Frame Rate
Main stream: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: For 1080p and 720p stream access: CIF/QVGA@15 fps For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)
Stream Type
Video, Video & Audio
Dual Stream Support
Yes
Synchronous Playback
8-ch
Network
Network Protocol
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP, HTTPS
Network Interface (RJ45)
1 x RJ45 10/100 Mbps self-adaptive Ethernet interface
Remote Connections
64
Auxiliary Interface
Number HDD Interface (SATA)
1 SATA
Max HDD Support (GB,TB)
4TB
Max. Storage Support
4TB
USB Port
2 x USB 2.0
Technical Info
CVBS Input
Support
Power Info
Power Supply
12 VDC, 1.5 A
Approx. Power Consumption
<=17 W (without HDD)
Physical Description
Color
White
Dimensions
200 x 200 x 48mm
Weight (Kg)
1 kg
Warranty
Warranty Details
1 year
Additional Info
Feature
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported; Audio via coaxial cable, Up to 1080p Lite@15 fps encoding capability, Max. 1200 m for 720p HDTVI signal.
Others
Encoding Resolution: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF For 720p stream access: 720p/WD1/4CIF/VGA/CIF For SD stream access: WD1/4CIF/VGA/CIF, AHD Input 1080p25, 1080p30, 720p25, 720p30, HDCVI Input 1080p25, 1080p30, 720p25, 720p30, Video Output Mode HDMI/VGA simultaneous output, Working Temperature: -10 to 55 Degree C, Working Humidity: 10% to 90%.
Country Of Origin
China
Made in/ Assemble
China
