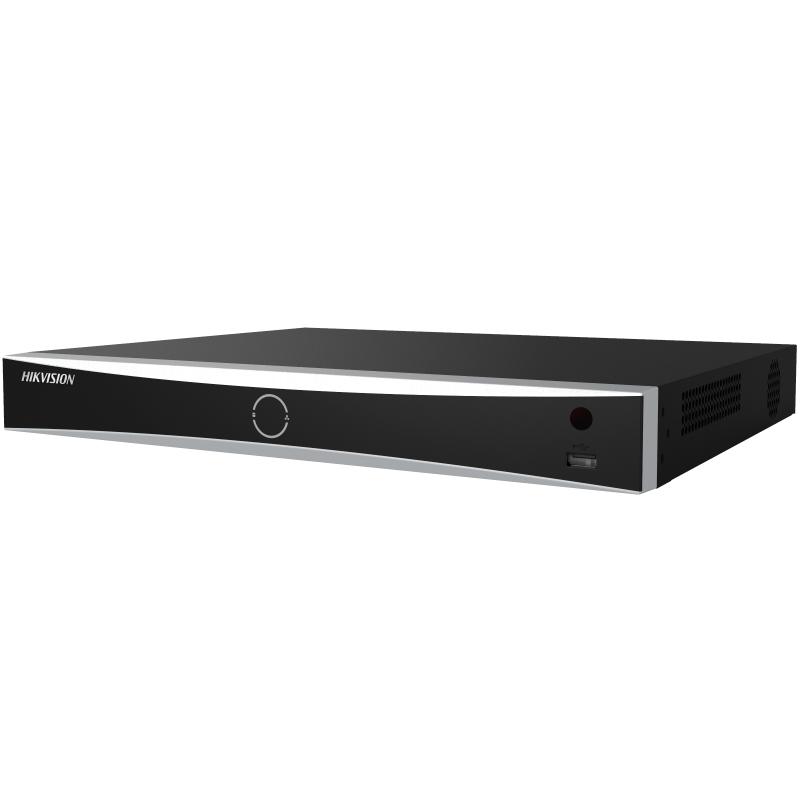

Hikvision DS-7632NXI-K2 32 Channel 1U AcuSense 4K NVR
42 people are viewing this product right now
General
Brand
Hikvision
Model
Hikvision DS-7632NXI-K2
Type
NVR
Video Info
Number of Input Channel
32 Channel
Video Compression/Format
H.265/ H.265+/ H.264+/ H.264
Video Output (VGA)
1-ch, 1920 1080/60 Hz, 1280 1024/60 Hz, 1280 720/60 Hz
Video Output (HDMI)
1-ch, 4K (3840 2160)/30 Hz, 2K (2560 1440)/60 Hz, 1920 1080/60 Hz, 1600 1200/60 Hz, 1280 1024/60 Hz, 1280 720/60 Hz, 1024 768/60 Hz
Video Recording Res.
1920 x 1080
Max. Video Recording Res.
3840 x 2160
IP Video Input
32-ch
Audio Info
Audio Input Channel (RCA)
1 Channel RCA
Audio Compression
G.711ulaw/G.711alaw/G.722/G.726/AAC
Audio Output Channel
1 Channel RCA
Two way Audio
1-ch, RCA (Linear, 1 KΩ)
Recording & Decoding
Stream Type
Video, Video & Audio
Dual Stream Support
Unmentioned
Live View / Playback Resolution
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Decoding Capability
AI on: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps), AI off: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30 fps)
Synchronous Playback
16-ch
Network
Network Protocol
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
Wi-Fi
No
Wi-Fi Details
Not Applicable
Wi-Fi Coverage (Approximate)
Not Applicable
Network Interface (RJ45)
1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
POE Interface
No
Remote Connections
128
Auxiliary Interface
Number HDD Interface (SATA)
2 SATA
Max HDD Support (GB,TB)
Up to 10TB capacity for each HDD
Max. Storage Support
20TB
USB Port
Front panel: 1 x USB 2.0; Rear panel: 1 x USB 2.0
Technical Info
Incoming Bandwidth
256 Mbps
Outgoing Bandwidth
160 Mbps
Video Detection
Motion Detection 2.0
Compatibility
Smart Phone Supported
Yes
Power Info
Power Supply
12 VDC, 3.3 A
Approx. Power Consumption
< 15 W (without HDD)
Physical Description
Color
Black
Dimensions
385 x 315 x 52mm
Weight (Kg)
< 1 kg
Warranty
Warranty Details
1 year
Additional Info
Feature
Up to 32-ch IP camera inputs, H.265+/H.265/H.264+/H.264 video formats, Up to 2-ch@12 MP or 3-ch@8 MP or 6-ch@4 MP or 12-ch@1080p decoding capacity, Up to 256 Mbps incoming bandwidth, Adopt Hikvision Acusense technology to minimize manual effort and security costs.
Others
AI by Device – Facial recognition, perimeter protection, motion detection 2.0, AI by Camera – Facial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA, Facial Detection and Analytics – Face picture comparison, human face capture, face picture search, Face Picture Library – Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture 4 MB, total capacity 1 GB), Facial Detection and Analytics Performance – 1-ch, 8 MP, Face Picture Comparison – 4-ch
Country Of Origin
China
Made in/ Assemble
China
21,250.00৳
🔥 11 items sold in last 3 hours
Hikvision DS-7632NXI-K2 32 Cha...
21,250.00৳
51 in stock
- Intelligent Analytics
- AI by DeviceFacial recognition, perimeter protection, motion detection 2.0
- AI by CameraFacial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA
- Facial Recognition
- Facial Detection and AnalyticsFace picture comparison, human face capture, face picture search
- Face Picture LibraryUp to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB)
- Facial Detection and Analytics Performance1-ch, 8 MP
- Face Picture Comparison4-ch
- Motion Detection 2.0
- By DeviceAll channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm
- By CameraAll channels
- Perimeter Protection
- By Device2-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
- By CameraAll channels
- Video and Audio
- IP Video Input32-ch
- Incoming Bandwidth256 Mbps
- Outgoing Bandwidth160 Mbps
- HDMI Output1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
- VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- Video Output ModeHDMI/VGA independent output
- CVBS OutputN/A
- Audio Output1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
- Two-Way Audio1-ch, RCA (Linear, 1 KΩ)
- Decoding
- Decoding FormatH.265/H.265+/H.264+/H.264
- Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Synchronous playback16-ch
- Decoding Capability
AI on: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)
AI off: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30 fps)
Smooth Playback (HC) ON & AI ON: 1-ch@12 MP (30 fps)/1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/7-ch@1080p (30 fps)
Smooth Playback (HC) ON & AI OFF: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/5-ch@4 MP (30 fps)/11-ch@1080p (30 fps)
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC
- Network
- Remote Connection128
- APIONVIF (profile S/G); SDK; ISAPI
- Compatible BrowserIE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
- Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Network Interface1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- Auxiliary Interface
- SATA2 SATA interfaces
- CapacityUp to 16 TB capacity for each HDD
- USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
- Alarm In/Out4/1
- General
- GUI LanguageEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
- Power Supply12 VDC, 3.3 A
- Consumption≤ 15 W (without HDD)
- Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity10% to 90%
- Dimension (W × D × H)385 mm × 315 mm × 52 mm (15.2″× 12.4″ × 2.0″)
- ≤ 1 kg (without HDD, 2.2 lb.)
- Certification
- FCCPart 15 Subpart B, ANSI C63.4-2014
- CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
- Obtained CertificationCE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS
